When to Replace or Regrind Stamping Tooling: A Practical Guide for Die Maintenance

In the world of metal stamping, tooling wear is inevitable. But knowing exactly when to replace a punch or regrind a cutting edge can mean the difference between high-quality output and costly downtime.



When to Replace a Punch

Punches are among the most stressed components in a stamping die. Here are the critical signs that it's time for replacement:



Visible Wear or Chipping

Inspect the punch tip regularly. If you notice:

Rounded or dull cutting edges

Small chips or cracks on the surface

Uneven wear patterns

Replace immediately. Continuing to use a chipped punch can damage the die button and produce burrs on your parts.



Excessive Burr Height

Burr height is one of the most reliable indicators. Measure burrs periodically:

Acceptable: Less than 10% of material thickness

Warning: 10–15% — plan for replacement soon

Critical: Over 15% — replace immediately



Dimensional Drift

If stamped parts begin to fall outside tolerance, even after adjusting the press parameters, the punch may be worn beyond its useful life.



Increased Punching Force

A sudden or gradual increase in press tonnage often indicates that the punch is dull and requires more force to shear through the material.



Surface Finish Degradation

When the sheared edge becomes rough, torn, or shows excessive rollover, it's time to evaluate punch condition.

General Rule of Thumb

For standard tool steels punching mild steel (up to 3mm thick), expect a typical punch life of:

50,000 – 200,000 strokes​ before resharpening

Replacement after 3–5 regrinds, or when the punch length is reduced by 20%

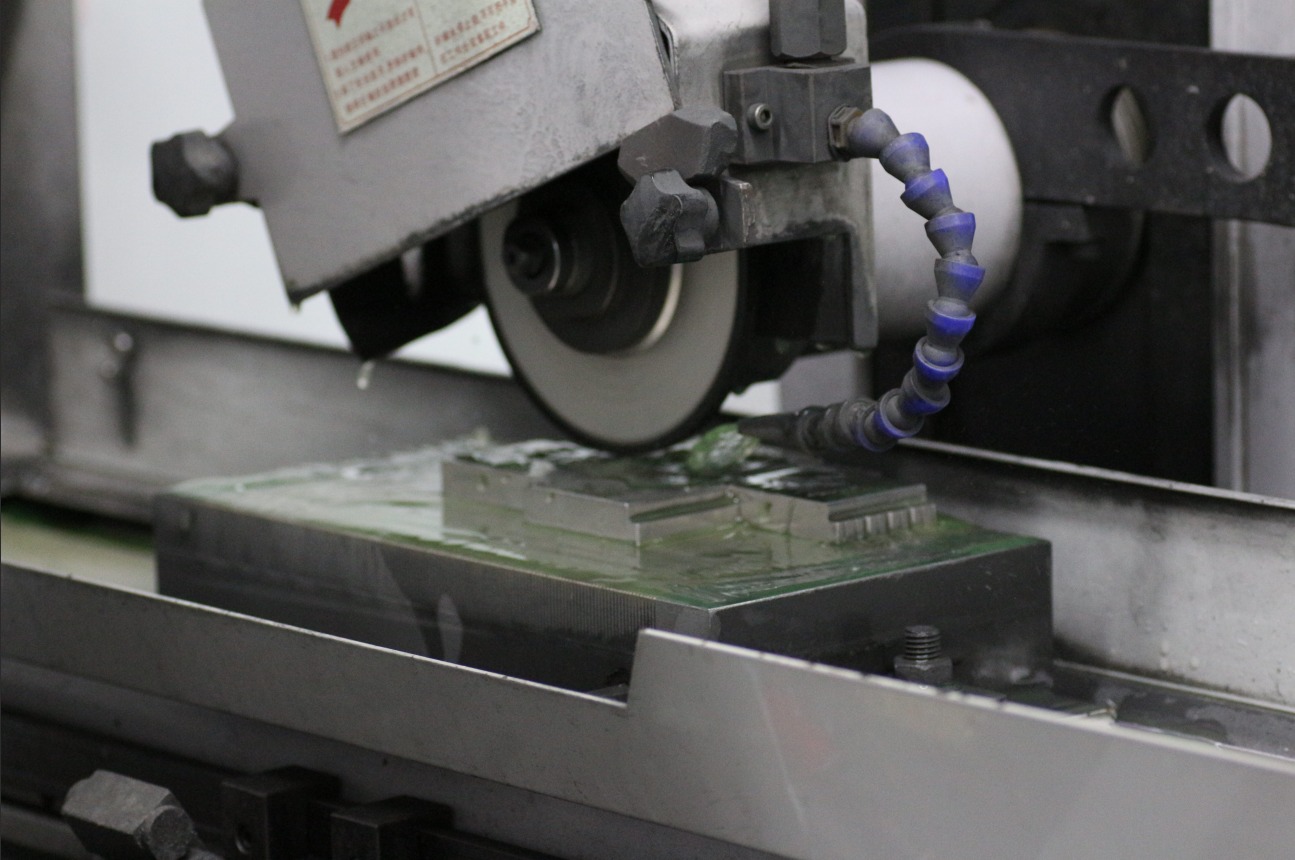

When to Regrind Cutting Edges

Regrinding restores sharpness without replacing the entire tool. Proper timing maximizes tool life while maintaining quality.



Key Indicators for Regrinding



1. Burr Threshold Exceeded

As mentioned above, once burr height reaches 10–15% of material thickness, schedule a regrind. Do not wait until it hits the critical zone.



2. Edge Radius Increase

Use an optical comparator or microscope. If the cutting edge radius exceeds 0.05–0.10 mm, regrinding is overdue.



3. Galling or Pick-Up

When material starts sticking to the punch or die surface, it indicates micro-welding due to heat and friction. Regrinding removes the damaged surface layer.



4. Sound and Vibration Changes

Experienced operators often hear when a die is dull. A change from a clean "snap" to a dull "thud" or increased vibration signals the need for maintenance.



5. Consistent Production Counts

Many shops adopt a preventive approach:

Regrind every 50,000 – 100,000 strokes​ depending on material type and thickness

Track actual performance and adjust intervals accordingly



Recommended Regrind Amount

Remove only 0.05 – 0.15 mm​ per regrind

Avoid removing too much material at once, as this generates heat and can soften the tool steel

Best Practices for Maximizing Tool Life

Practice	Benefit
Use proper lubrication	Reduces friction and heat buildup
Maintain correct clearance	Prevents excessive wear and chipping
Align punches precisely	Eliminates uneven loading
Store tools properly	Prevents corrosion and accidental damage
Keep detailed maintenance logs	Enables data-driven replacement decisions



The decision to replace a punch or regrind a cutting edge should never be based on guesswork. By monitoring burr height, dimensional accuracy, edge condition, and production counts, you can implement a predictive maintenance strategy that reduces unplanned downtime and extends tool life.A well-maintained die is a profitable die.
